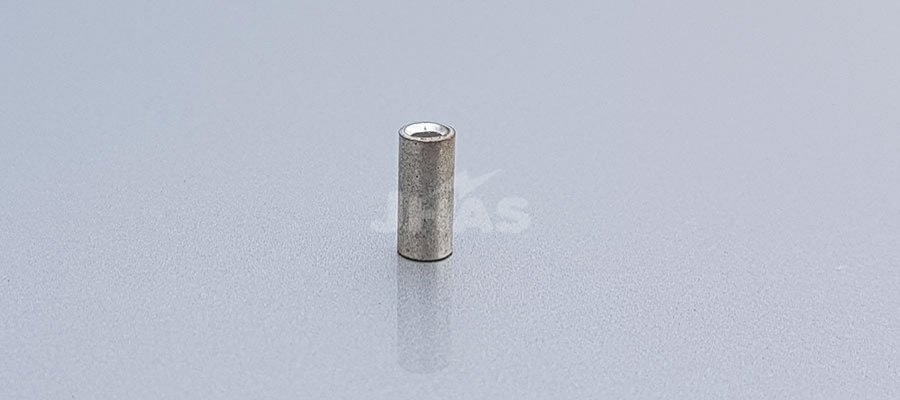

Sealing Ferrule (CSF)
JHAS Sealing Ferrule (CSF) seals are ideal for electricity meters, gas meters, water meters, taxi, drums and containers etc.
Available As
- Standard Item from Stock
- Custom Ordered Item

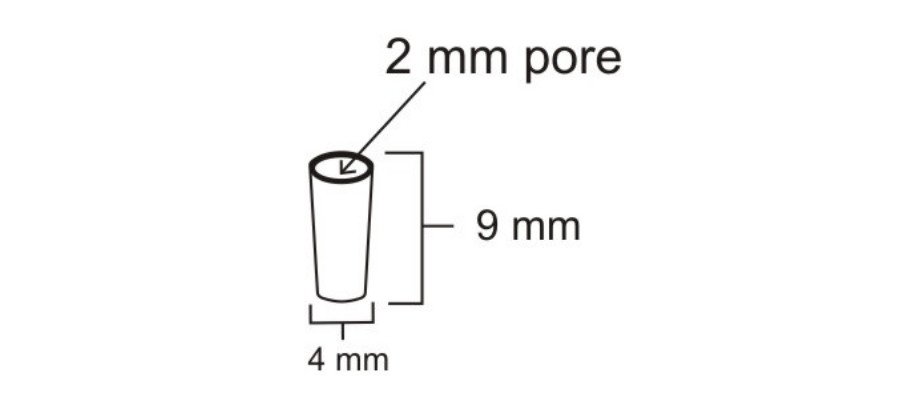

Technical Drawing
Sealing Ferrule (CSF)
Material
- Body: ZAMAK With ABS Plastic Housing (Zinc)
- Cable: Galvanised / Stainless Steel
Size
- Length: 9.0mm
- Inner Diameter: 2.0mm
- Outer Diameter: 4.0mm
- Customized size available
Printing
- Laser Marked Logo and Serial Number
- 2D Barcodes
Packaging
1000 Ferrules in a Polybag
Use
Pull wire thru object to be sealed and thru Sealing Ferrule, thereafter crimping by Sealing Pliers attains complete Sealing.
Product Information
- Locking mechanism with Anti Reverse Movement of wire
- High Tensile Strength Wire Rope of 1.5mm & 2.0mm diameter
- Available in length starting from 150 mm to any length
- Various Colours Available
