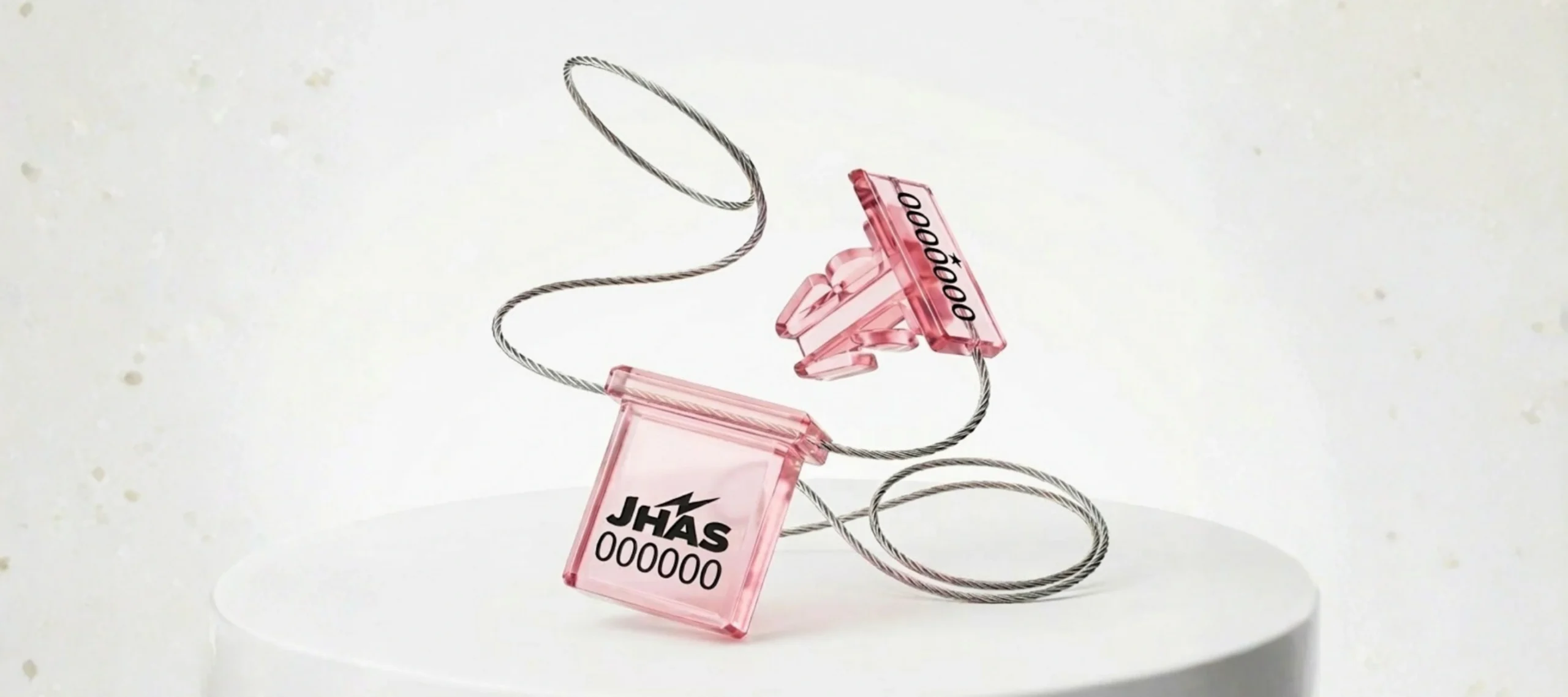

Polycarbonate Double Lock Seals (DL- PC)
JHAS Dual Lock Seals (DL- PC) have double stage locking mechanism. Ideal seals for Electricity meters, Gas Meters, Water meters, taxi, Drums, Containers etc.
Available As
- Standard Item from Stock
- Preprinted & Prenumbered
- Customized Ordered Item
- Your Logo, Alphanumeric Serial number,Bar Code, QR Code

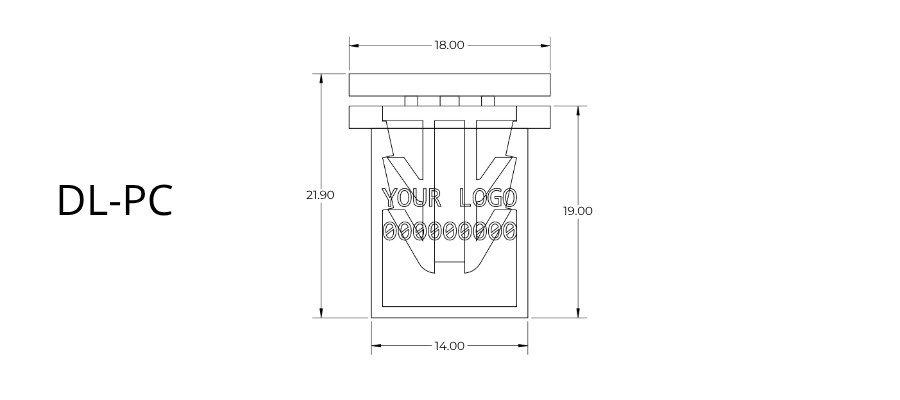

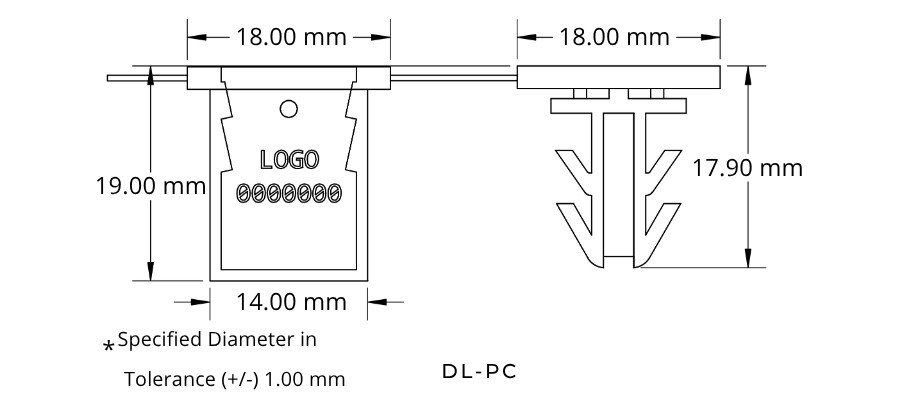

Technical Drawing
Polycarbonate Double Lock Seals (DL- PC)
Material
- Body: Polycarbonate
- Wire: Stainless Steel AISI 304
Size
- Top Width: 18.00 mm
- Body Height: 21.90 mm
- Inner Body Height: 19.00 mm
- Bottom Width: 14.00 mm
Printing
- Logo: Laser Marked/ Embossed in High Relief
- Serial Nos: Laser marked on Both Parts of Seal
- Bar-coding: Available
Packaging
- 100 serially arranged in a poly bag
- 5000 seals to a carton
Use
- Pull the wire through the object to be sealed and insert it through the hole in the cavity part of the seal. Then, press the locking part firmly into the cavity twice to ensure complete locking. Remove using cable cutters.
Product Information
- Polycarbonate Plastic Seal with Attached wire for Fast and Easy application
- Four Lock / Double Lock Type Push Fit Locking mechanism
- Locking in a way that Lock Completely Fits into Body leaving no space for Insertion of any object
- Permanent Laser marked Serial Nos. upto 8 Digits in Black Color for Easy Readability on Both Parts
- Logo in High Relief/ Laser marking available
- Barcoding Available
- Any length of Wire
- Various Colours Available including Transparent Color
