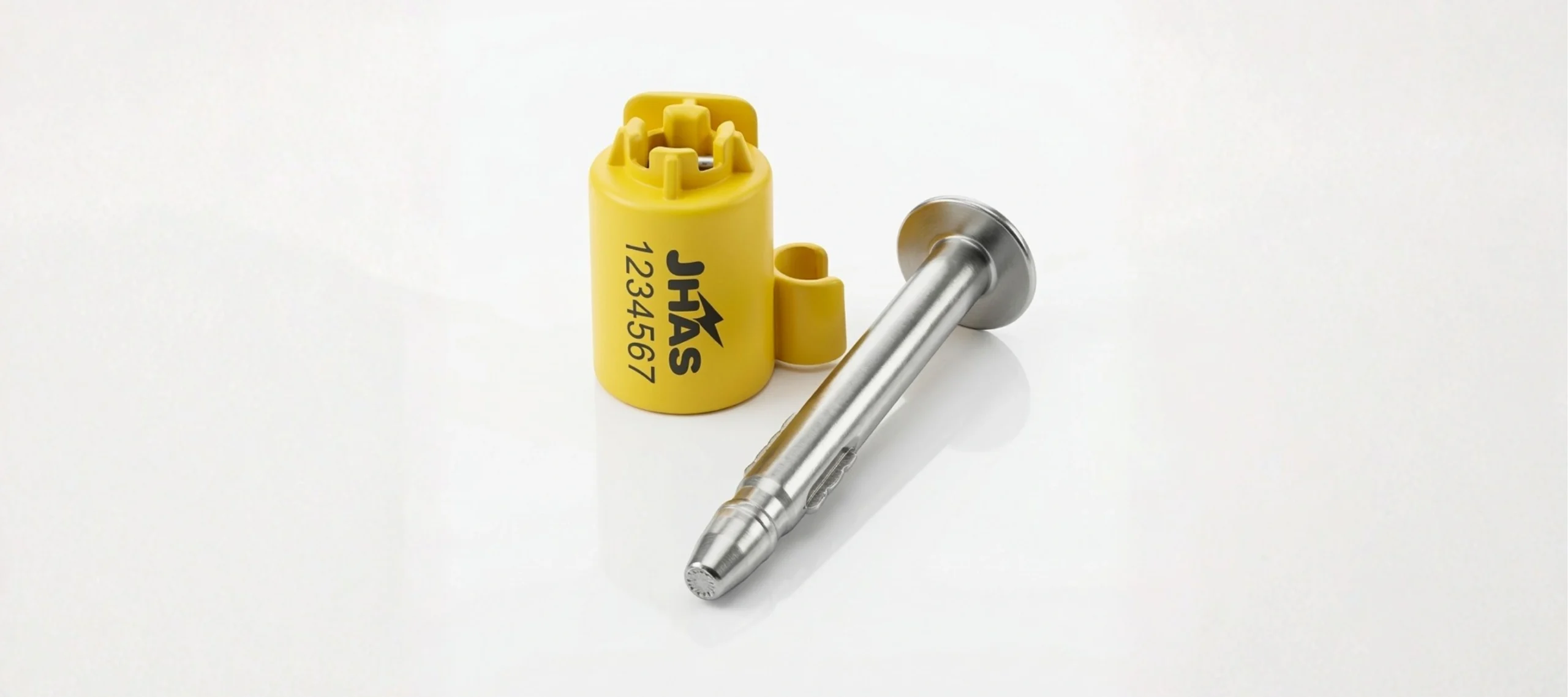

Container ANTI-SPIN Bolt Lock Seals (CS-Neptune)
JHAS Container ANTI-SPIN Bolt Lock Seals (CS-Neptune) are ideal for containers, trucks, tankers, logistics applications etc.
Available As
- Standard Item from Stock
- Preprinted & Prenumbered
- Custom Ordered Item
- Your Logo, Alphanumeric Serial number

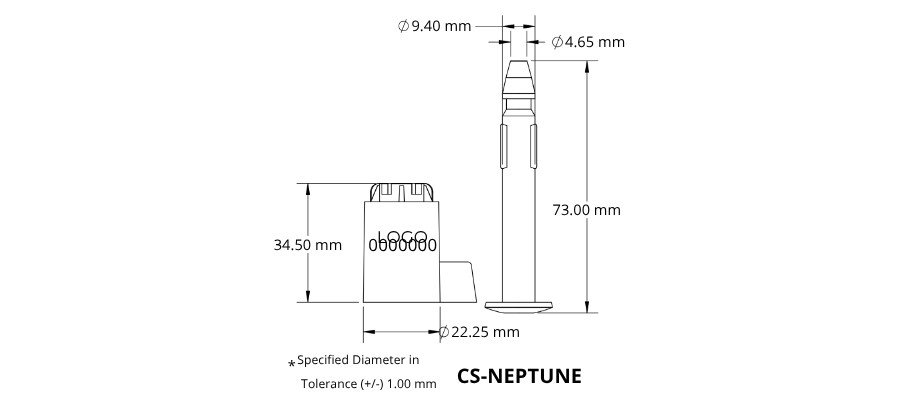

Technical Drawing
Container ANTI-SPIN Bolt Lock Seals (CS-Neptune)
Material
- Jacket: ABS / PP
- Bolt: Galvanised Iron
Size
- Pin Length: 73 mm
- Height: 34 mm
- Diameter: 22 mm
- Pin Diameter: 9 mm
- Tip Diameter: 4 mm
Printing
- Logo: Laser Marked
- Serial Nos: Laser marked on Both Parts of Seal
Packaging
1,000 Seals in a Carton
Use
Press the anchor part into the cavity part after passing through the object to be sealed, until a tactile ‘click’ is heard, ensuring complete locking.
Product Information
- Push fit locking mechanism with ANTI-SPIN movement
- High tensile strength locking pin of 7 mm
- Bolt length 70 mm
- Various colours available
- ISO – 17712 & CTPAT compatible seals
