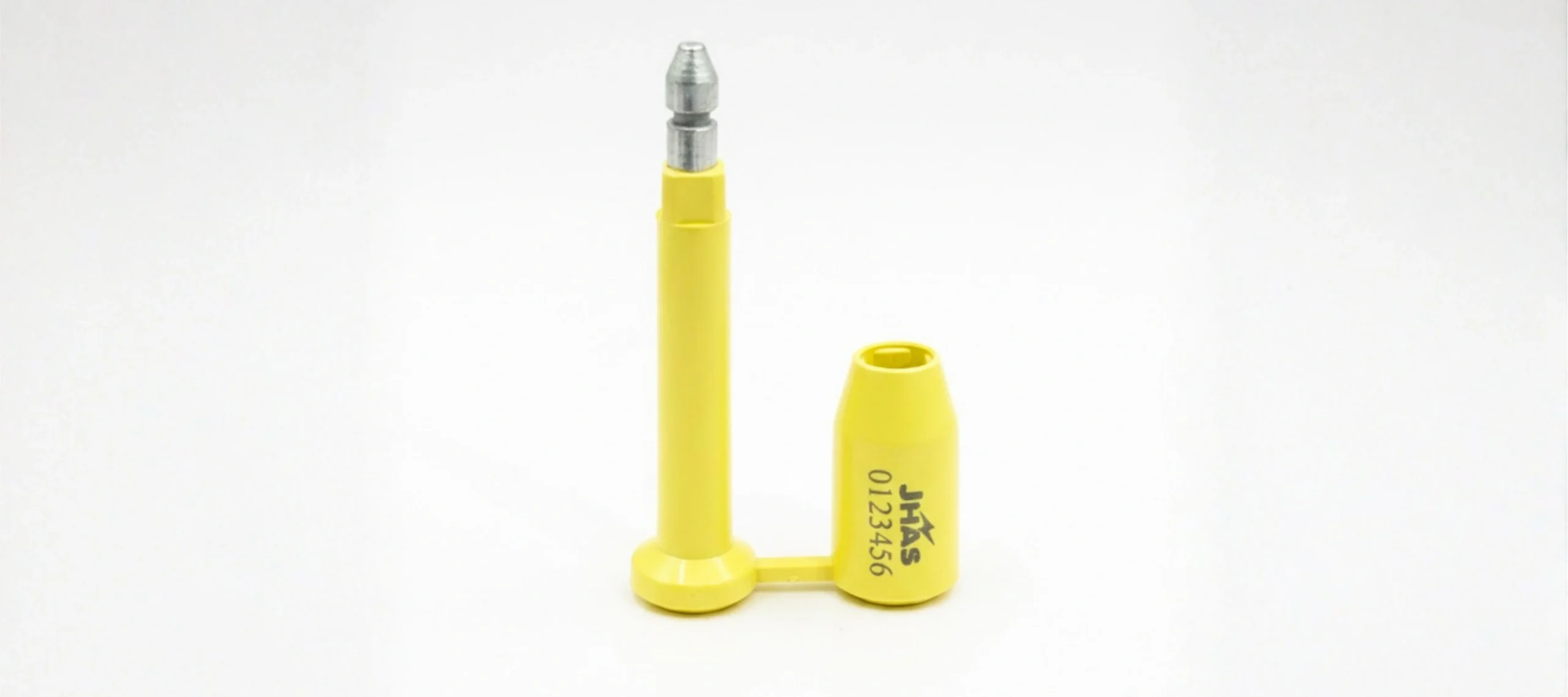

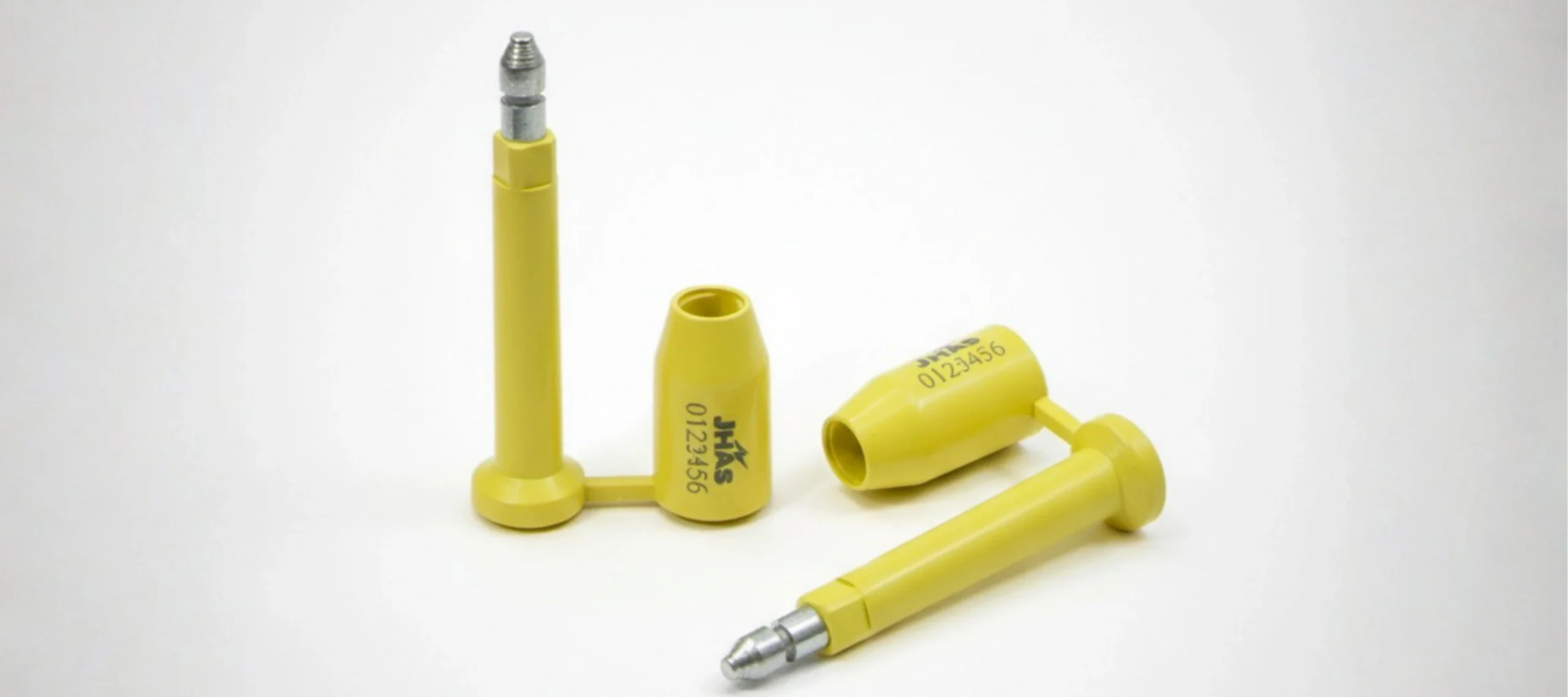

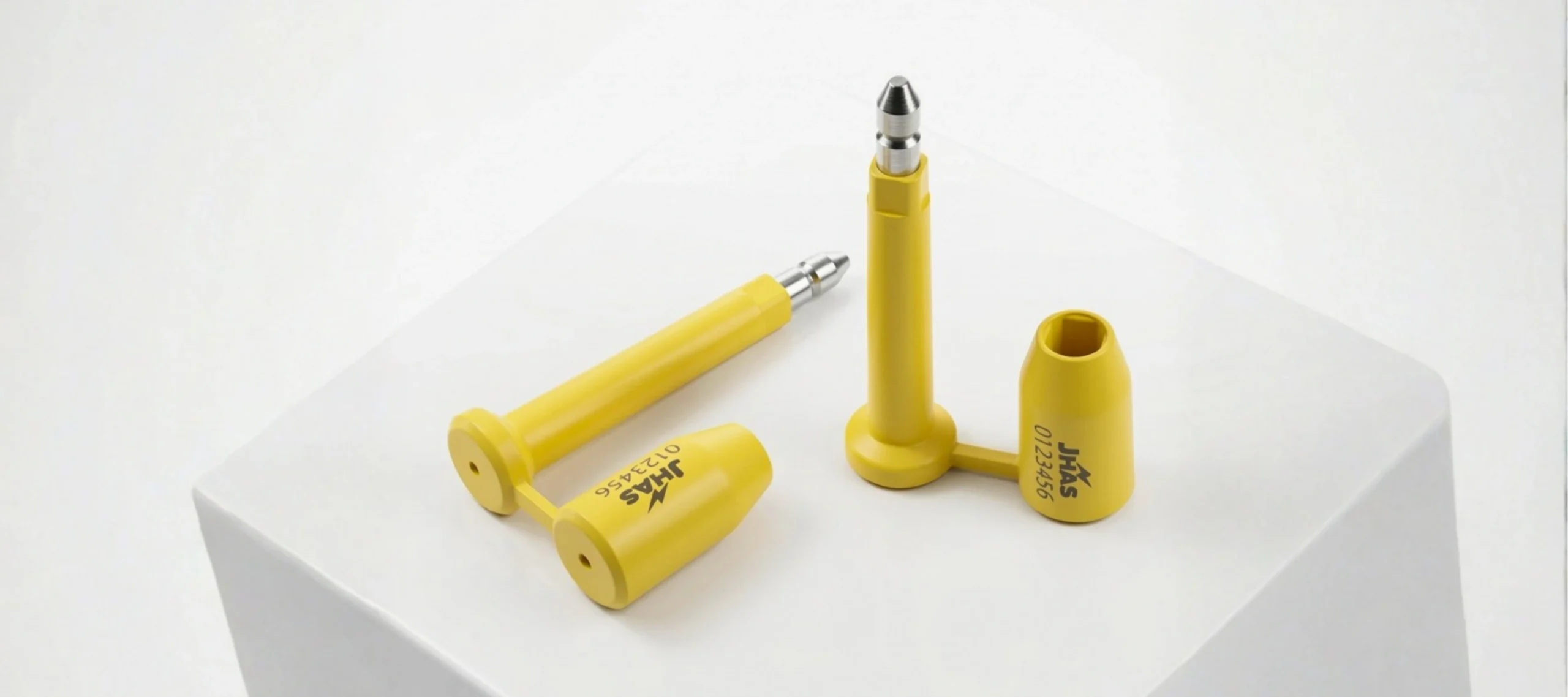

Container ANTI-SPIN Bolt Lock Seals (CS-LUR)
JHAS Container ANTI-SPIN Bolt Lock Seals (CS-LUR) are ideal for containers, trucks, tankers, logistics applications etc.
Available As
- Standard Item from Stock
- Preprinted & Prenumbered
- Custom Ordered Item
- Your Logo, Alphanumeric Serial number,Bar Code, QR Code

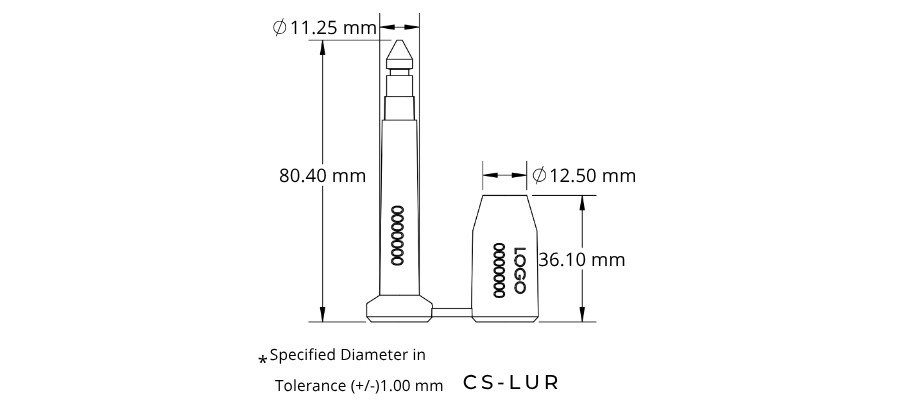

Technical Drawing
Container ANTI-SPIN Bolt Lock Seals (CS-LUR)
Material
- Jacket: ABS / PP
- Bolt: Galvanised Iron

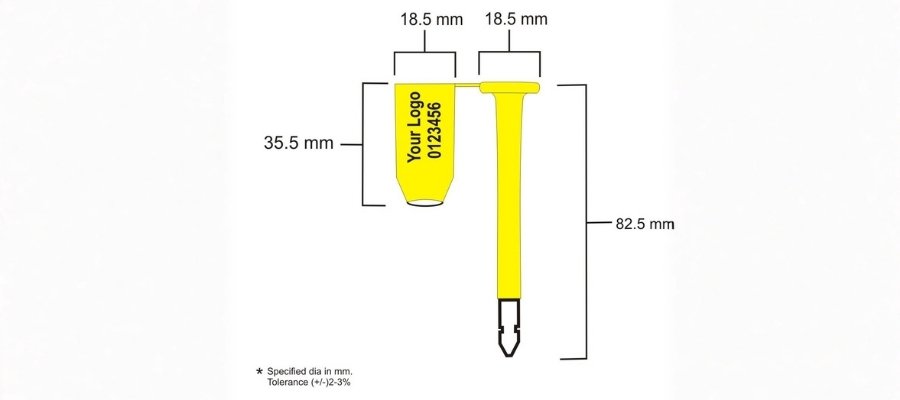

Size
- Overall Length: 82 mm
- Identification Flag Height: 35 mm
- Identification Flag Width: 18 mm
- Locking Head Width: 18 mm
- Printing Area: 18 × 35 mm
Printing
- Logo: Laser Marked
- Serial Nos: Laser marked on Both Parts of Seal
Packaging
1,000 Seals in a Carton
Use
Press the anchor part into the cavity part after passing through the object to be sealed, until a tactile ‘click’ is heard, ensuring complete locking.
Product Information
- Push fit locking mechanism with ANTI-SPIN movement
- High tensile strength locking pin of 7 mm
- Bolt length 82.5 mm
- Various colours available
- ISO – 17712 & CTPAT compatible seals
