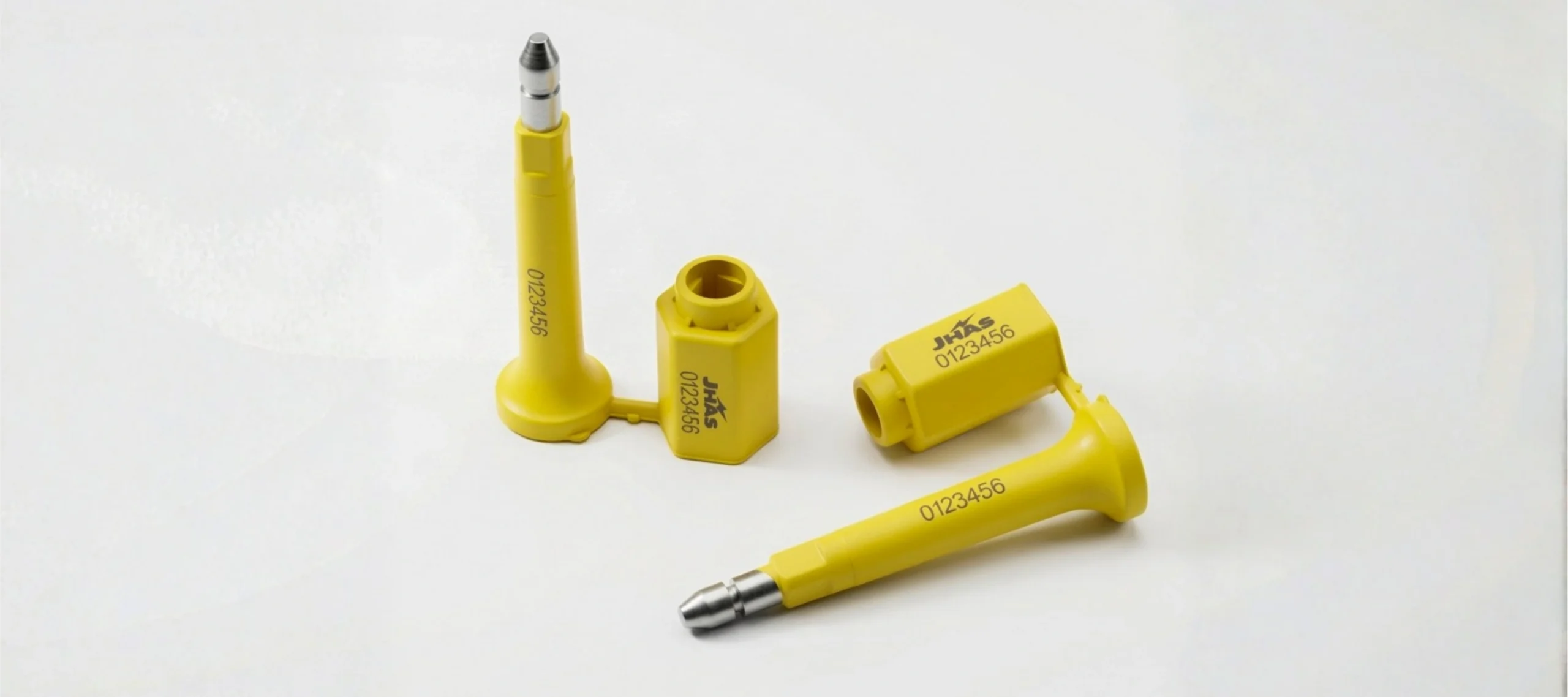

Container ANTI-SPIN Bolt Lock Seals (CS-LUH)
JHAS Container ANTI-SPIN Bolt Lock Seals (CS-LUH) are ideal for containers, trucks, tankers, logistics applications etc.
Available As
- Standard Item from Stock
- Preprinted & Prenumbered
- Customized Ordered Item
- Your Logo, Alphanumeric Serial number

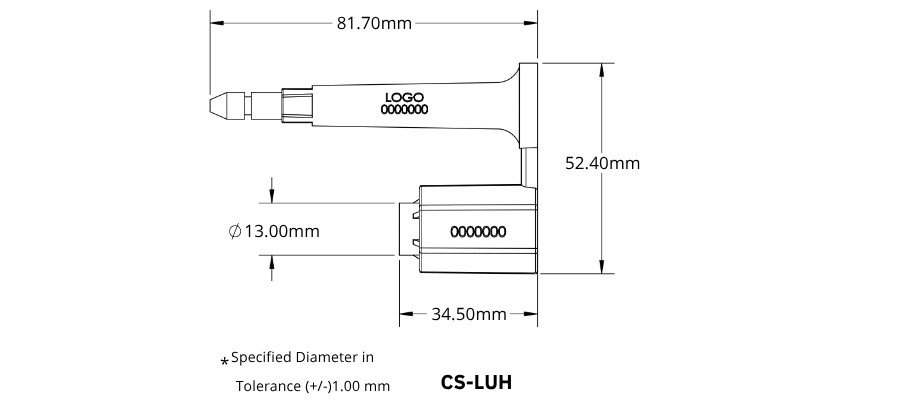

Technical Drawing
Container Bolt Lock Seals (CS-LUH)
Material
- Jacket: ABS / PP
- Bolt: Galvanised Iron
Size
- Overall Length: 81.70 mm
- Overall Height: 52.40 mm
- Locking Body Length: 34.50 mm
Printing
- Logo: Laser Marked
- Serial Nos: Laser marked on Both Parts of Seal
Packaging
1,000 Seals in a Carton
Use
Press the anchor part into the cavity part after passing through the object to be sealed, until a tactile ‘click’ is heard, ensuring complete locking.
Product Information
- Push fit locking mechanism with ANTI-SPIN movement
- High tensile strength locking pin of 7 mm & 8 mm
- Bolt length 70 & 80 mm
- Various colours available
- ISO – 17712 & CTPAT compatible seals
